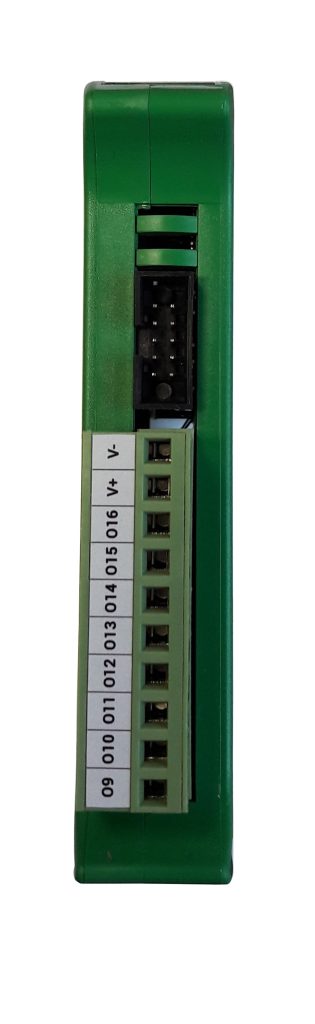

MOD-16O-PNP – 16 PNP outputs

123,00  (926,74 kn)

VAT excluded
1 € = 7,53450 kn

The MOD-16O-PNP module is an innovative device that provides a simple and cost-effective extension of the number of line of outputs in many of popular PLCs.

The module MOD-16O-PNP communicates with all commercially available PLCs and other devices that support popular Modbus Master protocol.

  • OUTPUT: 16 digital outputs PNP
  • INPUT: RS485 – Modbus Slave (ASCII, RTU)
  • Supply voltage: 10-38VDC; 10-28VAC
  • Up to 128 modules on RS485 network
  • Mounting on a DIN rail
  • LED indication for input and output status
  • Configurable output status after power return
  • Output type PNP, 500mA
  • Built-in protection diode – can be connected inductive loads without additional protection (contactors, relays, low power solenoid valves)
  • Galvanic isolation of outputs
  • Watchdog function
  • Comfortable connectors for cables (up to 2.5 mm2)
  • Configuration: Modbus Configurator (free)
  • Custom Tariff Number: 8543-70-90-99
  • 2 years guarantee
  • Made in Poland
